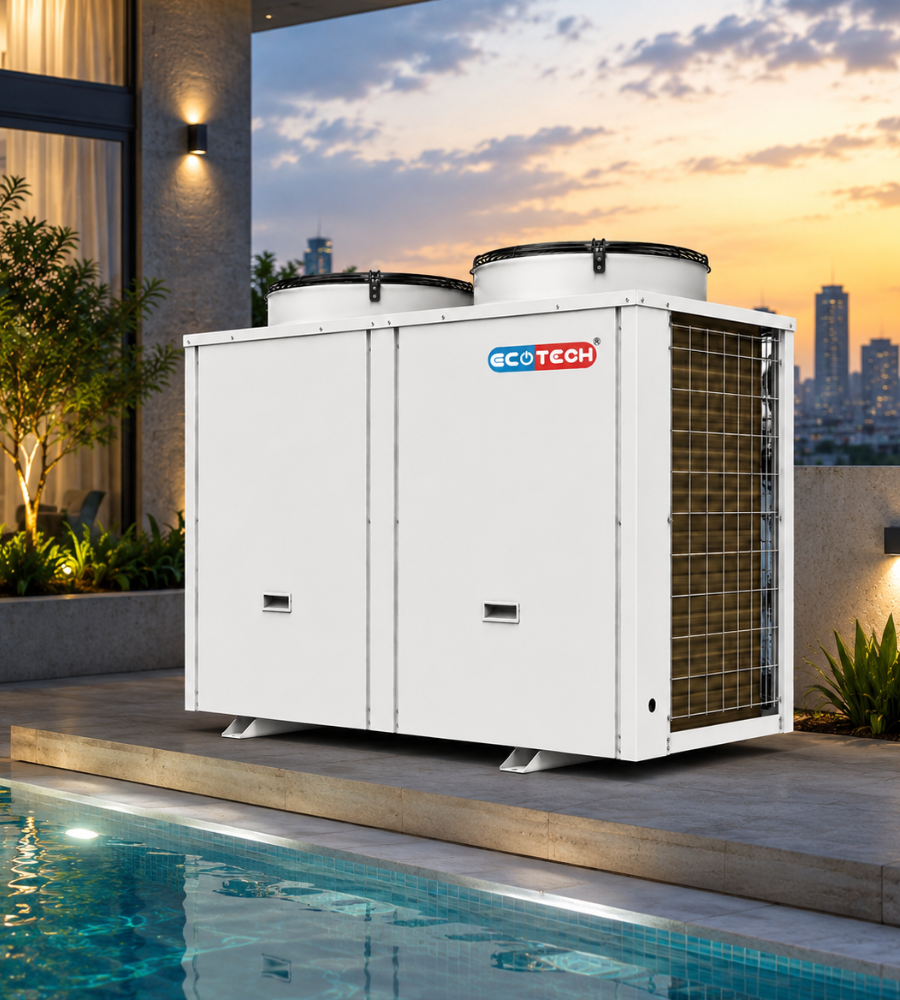

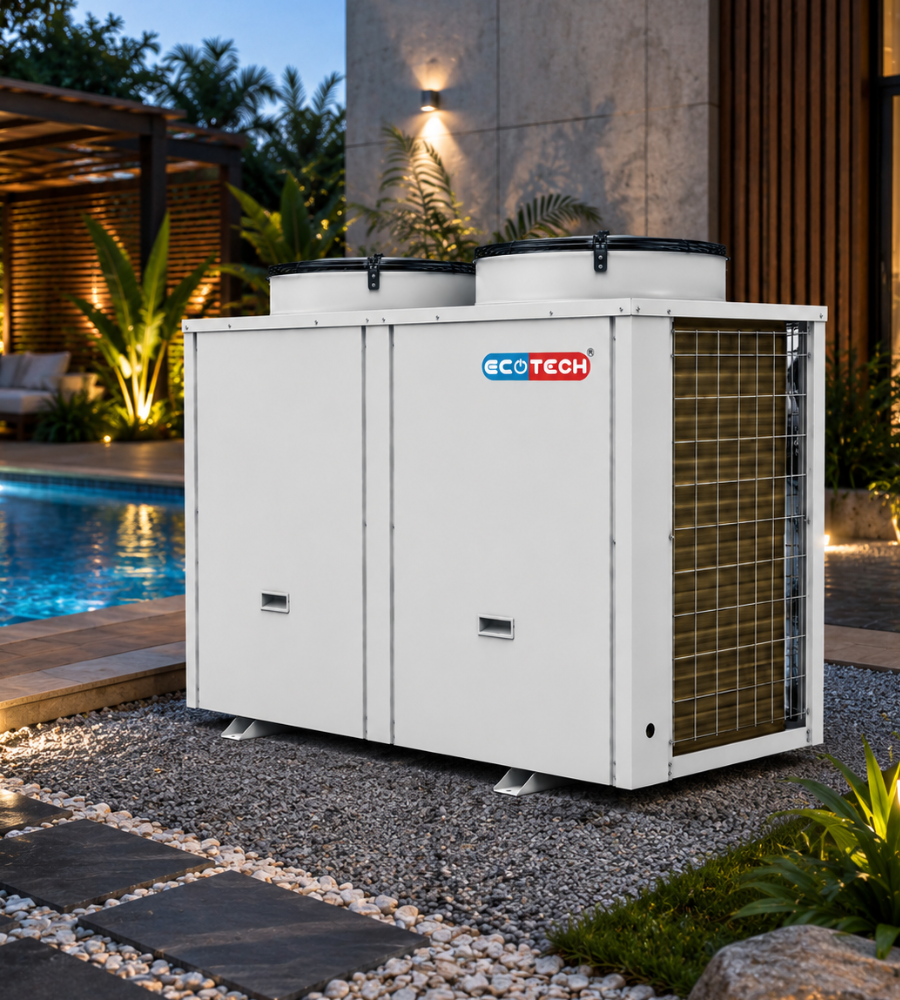

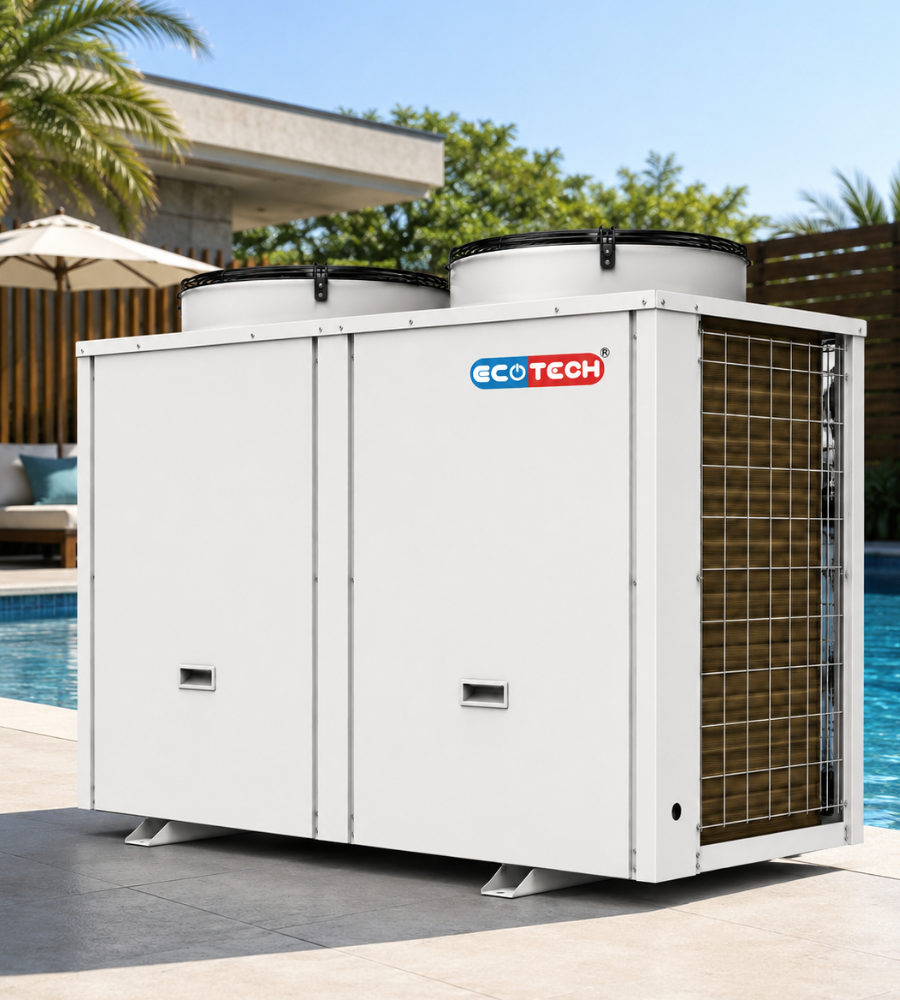

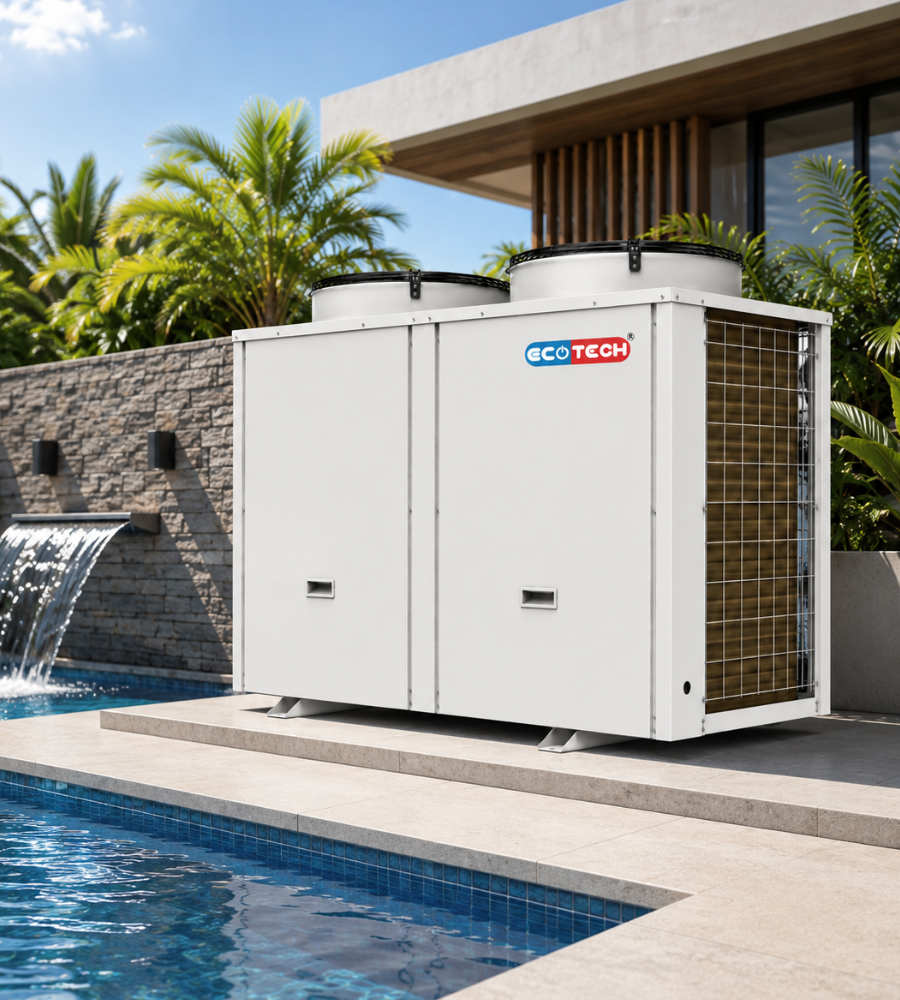

EcoTech Swimming pool heat pumps redefine pool temperature management, offering a year-round swimming experience that’s both cost-effective and eco-friendly. This comprehensive guide covers the mechanics, benefits, installation, upkeep, and financial aspects of these heat pumps.

Ideal for pool owners seeking extended swimming seasons and reduced energy costs, EcoTech’s heat pumps are renowned for their efficiency, durability, and precise temperature control. Optimal results are achieved by selecting the right size, professional installation, and routine maintenance. Dive into comfort and savings with a swimming pool heat pump, enjoying your pool throughout the year.

SPECIFICATION

Model EcoT-S-028TI EcoT-S-058TI EcoT-S-090TI EcoT-S-120TI EcoT-S-145TI EcoT-S-175TI EcoT-S-220TI
Pool Cubic Meter 40-85 80-170 100-200 200-400 260-500 350-600 500-800
Power Supply 380V/3/50Hz 27°
Heating Capacity at Air 27°C/24°C, Water
Heating Capacity 28 58 90 120 145 175 220
Power Input (KW) 4.8 10.1 16.2 21.4 25.7 31.4 41.1
Cop 5.81 5.75 5.56 5.62 5.65 5.58 5.35
Heating Capacity at Air 15°C/12°C, Water 26°C
Heating Capacity 22 48 75 95 120 145 185
Power Input (KW) 4.7 9.8 15.6 20.2 25.5 31.0 40.5
Cop 4.76 4.88 4.81 4.71 4.70 4.67 4.57
Cooling Capacity at Air 35°C/24°C, Water 29°C in, 27°C out
Cooling Capacity (Kw) 20 42 68 85 108 130 165
Power Input (KW) 6.5 13.6 22.3 27.4 36.2 45.0 57.3
EER 3.1 3.09 3.05 3.1 2.98 2.89 2.88
Max Power Input(KW) 7.7 14.7 26.0 31.0 44.5 53.9 67.2
Max Current (A) 13.8 26.4 46.8 55.9 80.2 97.1 121.1
Refrigrent R410A
Compressor type Scroll
Heat Exchanger Titanium
Expansion Valve Electronic
Air Flow Direction Vertical
Water Flow Volume (m³/h) 10 22 30 40 62 70 90
Length 805 1410 1590 2150 2150 2150 2148
Net Dimensions(mm) Width 663 748 850 1078 1078 1078 2148
Height 1050 1050 1500 2258 2258 2258 2138
Working temperature range (°C) -7~43
Noise(dB) $60 1965 568 $70 571 572 $80
Net Weight(kg) 120 220 550 650 760 900 2100
Water connection(mm) 50 65 65 75 75 100 125
Notes : Rated cooling conditions : Water source inlet/outlet 30/35°C, user side inlet temperature 17°
