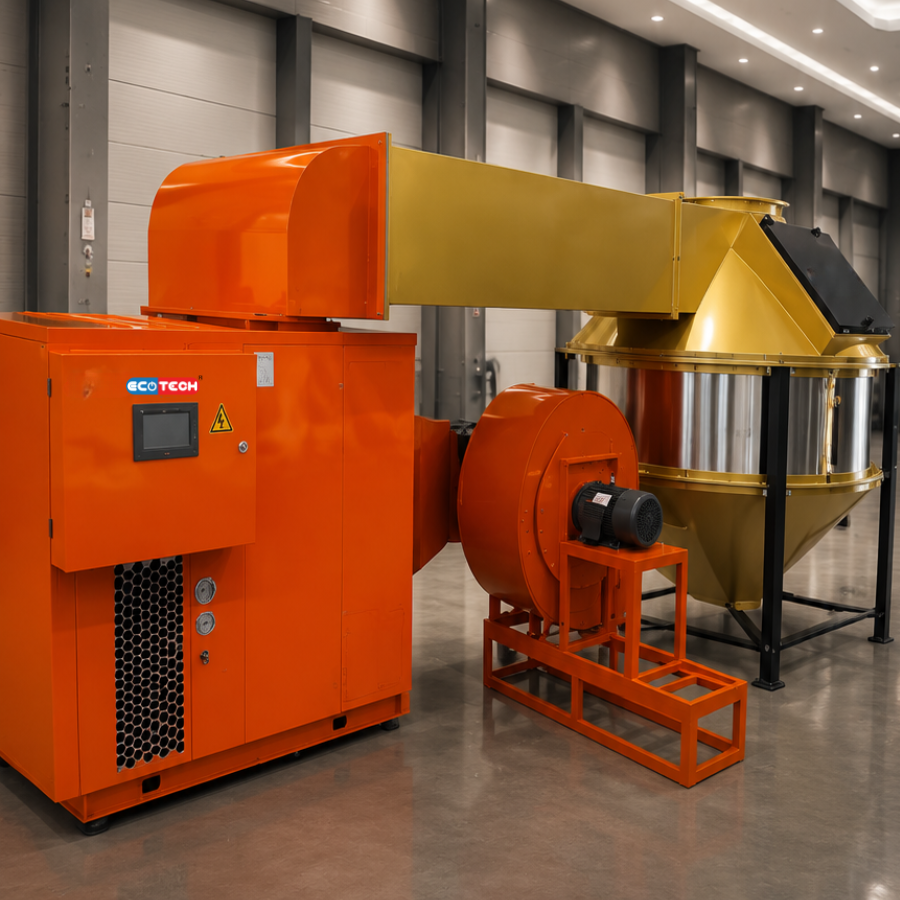

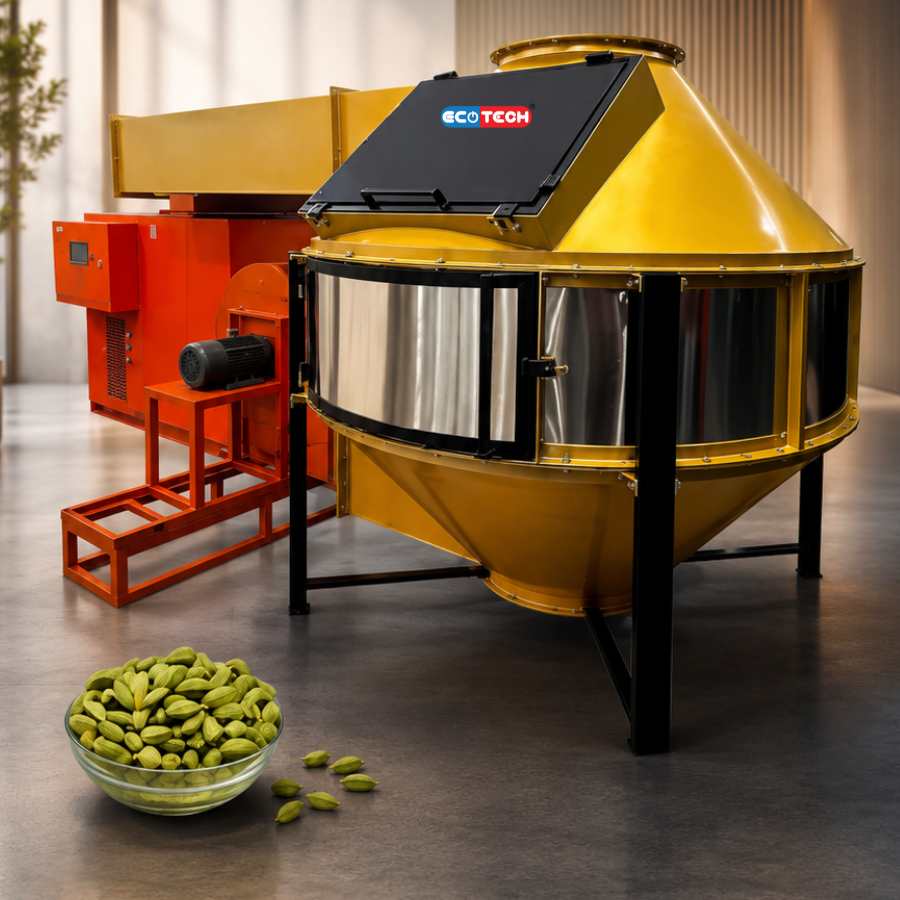

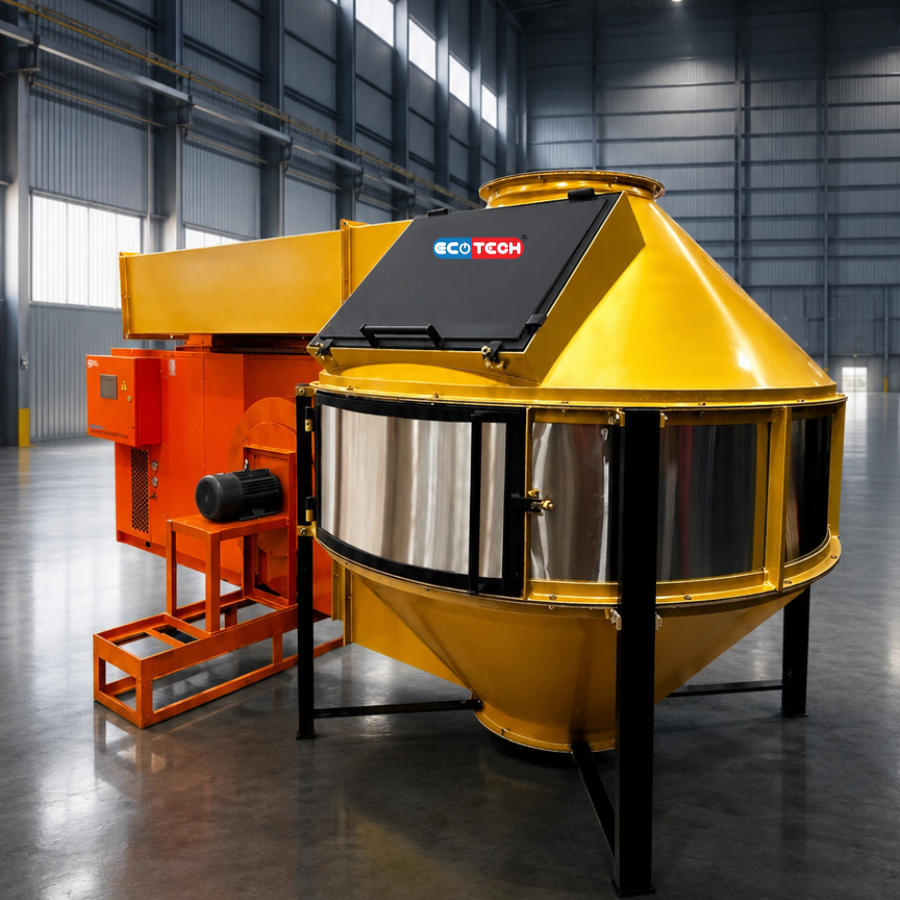

Cardamom Dehydrator
EcoTech Commercial Heat Pump Dehydrators are available in standard configurations ranging from 10 kg to 2000 kg per batch. For larger production requirements, higher-capacity and customized dehydration systems can also be supplied based on the customer’s specific requirements.Whether you need a standard commercial unit or a large-scale customized dehydration solution, EcoTech can provide a system designed around your required batch capacity, drying area, product type, and production volume.
- Standard capacity: 10–2000 kg/batch
- Higher capacities available on request
- Customized system configurations available
- Controlled drying temperature from 30°C to 75°C
- High-efficiency heat pump drying technology
- SS304 Stainless-Steel Trays for hygienic food processing
- Intelligent PLC Control System
- Uniform hot-air circulation for consistent drying
- Adjustable drying conditions for different food products
- Suitable for repeated commercial batch production
- Energy-efficient operation compared with conventional drying methods
- Integrated backup heater for additional temperature support
- Multiple capacity options for different production requirements
- Robust construction for continuous commercial operation
- Suitable for fruits, vegetables, herbs, spices, mushrooms, meat, seafood, snacks, and other food products
EcoTech Commercial Heat Pump Dehydrators combine advanced heat pump technology, efficient dehumidification, controlled temperature, intelligent PLC operation, and stainless-steel food processing components to provide a reliable solution for commercial food dehydration.Drying chamber and tray area can be designed according to production requirements Suitable for small, medium, and large-scale food processing operations
Application of Cardamom Dehydrator
Key Features
Energy-Efficient Heat Pump Technology
Uses heat pump technology to efficiently generate and recover thermal energy, helping reduce energy consumption during the drying process.
Precise Temperature Control
Provides controlled drying temperatures to suit different food products and help achieve consistent results.
Dehumidification System
Efficiently removes moisture from circulating air, accelerating the dehydration process and maintaining suitable drying conditions.
Uniform Air Circulation
Optimized hot air circulation helps distribute heat evenly throughout the drying chamber for more uniform product drying.
Food-Grade Construction
Stainless-steel construction provides a hygienic and easy-to-clean environment suitable for food processing applications.
Intelligent Controller
Digital controls allow users to manage drying temperature, time, and operating conditions with greater precision.
Consistent Drying Quality
Stable temperature, airflow, and humidity control help achieve repeatable drying results from batch to batch.
Low-Temperature Drying Capability
Controlled drying conditions can help protect heat-sensitive food products and preserve important product characteristics.
Low Maintenance
Reliable components and an integrated system design help reduce routine maintenance requirements.
Product Specification
| COMMERCIAL HEAT PUMP DEHYDRATOR | ET-HPD-28A-13-N-SS-0 | ET-HPD-40A-20-N-SS-0 | ET-HPD-105D-32-S-PW-0 | ET-HPD-105D-64-S-PW-0 | ET-HPD-180D-96-S-PW-0 | ET-HPD-360D-192-S-PW-0 | ET-HPD-600D-320-S-PW-0 | ET-HPD-960D-576-S-PW-0 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 10-40 kg/batch | 20-100 kg/batch | 80-200 kg/batch | 200-250 kg/batch | 100-300 kg/batch | 300-600 kg/batch | 800-1500 kg/batch | 1500-2000 kg/batch |
| Number of Trays | 13 | 20 | 32 | 64 | 96 | 192 | 320 | 576 |
| Power Supply | 230V / 1Ph / 50Hz | 230V / 1Ph / 50Hz | 415V / 3Ph / 50Hz | 415V / 3Ph / 50Hz | 415V / 3Ph / 50Hz | 415V / 3Ph / 50Hz | 415V / 3Ph / 50Hz | 415V / 3Ph / 50Hz |
| Connected Power | 2.2 kW | 3.5 kW | 6 kW | 6 kW | 9.1 kW | 18.2 kW | 36.5 kW | 48.5 kW |
| Avg. Running Power | 0.7 kW | 1.1 kW | 5.5 kW | 5.5 kW | 5.8 kW | 12 kW | 20.6 kW | 27.4 kW |
| Heating Capacity | 2.8 kW | 5.0 kW | 10.5 kW | 10.5 kW | 18 kW | 36 kW | 60 kW | 96 kW |
| Backup Heater | 1 kW | 1 kW | 5 kW | 5 kW | 5 kW | 11.1 kW | 15 kW | 20 kW |
| Temperature Range | 30-75°C | 30-75°C | 30-75°C | 30-75°C | 30-75°C | 30-75°C | 30-75°C | 30-75°C |
| Dehumidification Rate | 2 L/hr | 3.5 L/hr | 13.5 L/hr | 13.5 L/hr | 22.6 L/hr | 45.7 L/hr | 83.5 L/hr | 111.4 L/hr |
| Usable Tray Area | 4 m² | 7 m² | 23 m² | 32 m² | 47 m² | 96 m² | 160 m² | 288 m² |
| Refrigerant | R134A | R134A | R134A | R134A | R134A | R134A | R134A | R134A |
| Tray Material | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 |
| Control System | Intelligent PLC | Intelligent PLC | Intelligent PLC | Intelligent PLC | Intelligent PLC | Intelligent PLC | Intelligent PLC | Intelligent PLC |
| # Technical information may change without prior notice due to continuous improvement process. | ||||||||
