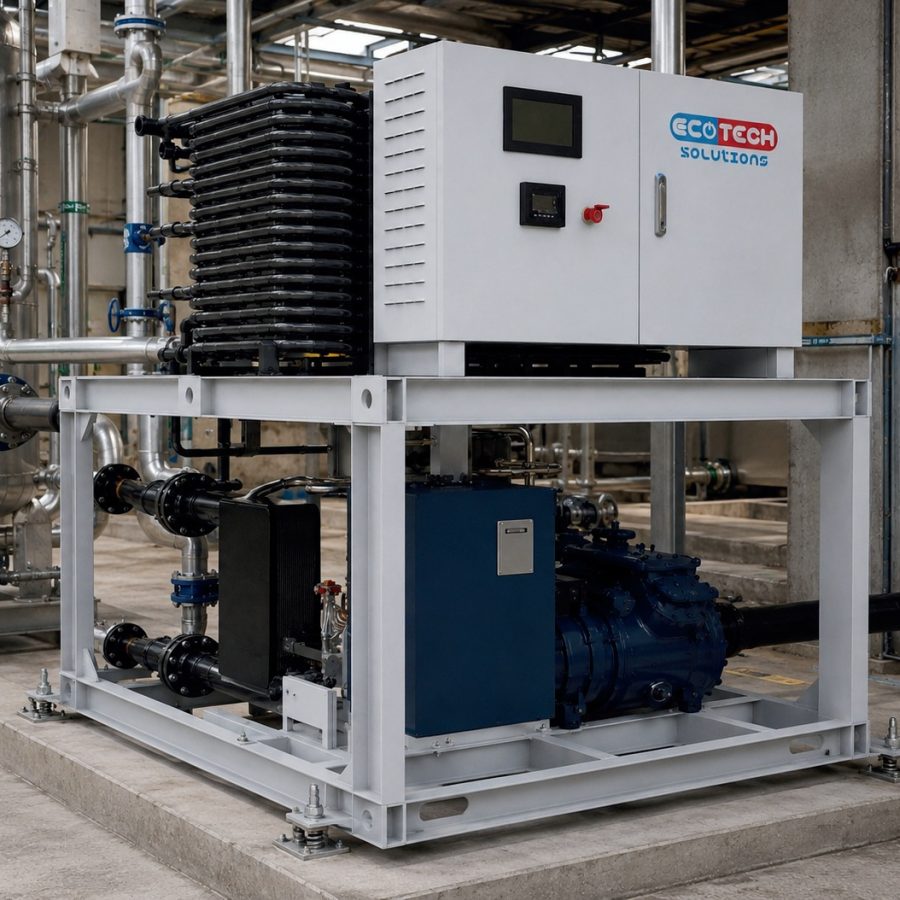

SCREW COMPRESSOR HEAT PUMP
1. Unit function:
The water source heat pump system can be used for cooling and heating. One machine has multiple functions: one system can replace the original two sets of boilers and air-conditioning devices or systems.
2. Advantages of the unit:
No boiler room system is required for heating, no cooling tower is required for refrigeration and no pollution and no emissions are realized during use. : While saving a lot of energy, it also reduces the nitial investment of equipment. It can save energy by 30%-80% compared with a central air conditioner during operation
3. Unit capacity:
cooling range: 70kw -5000kw; heating capacity range: 80kw-6000kw. The unit has a high energy efficiency ratio, and the energy of 1KW can be used for heating and cooling in an area of 70-100 square meters.
4, Non-standard customization:
The unit can provide refrigerant such as R1234ze and R134a.380V-50Hz-3N and other power supply formats can be selected.
SPECIFICATION

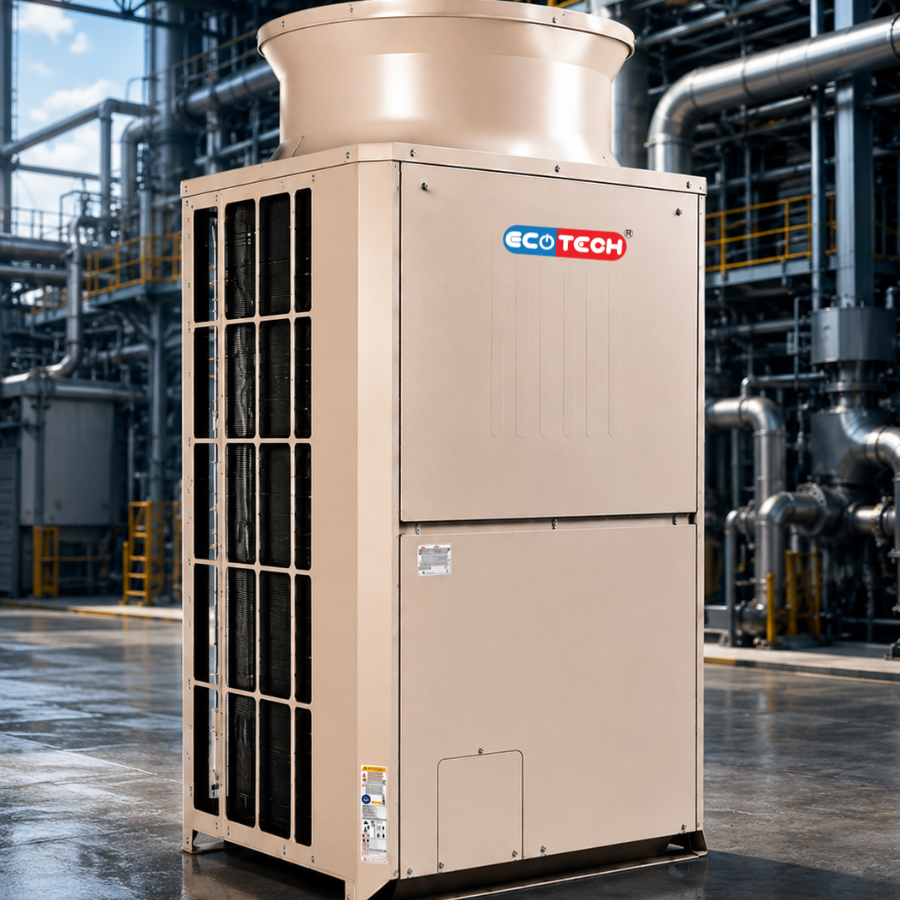

| CO2 HEAT PUMP | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | EcoT-78 | EcoT-78 | EcoT-78 | ||||||||
| Standard temperature condition | Heating Capacity | kW | 7.8 | 24.0 | 40.0 | ||||||
| Hot water capacity | L/H | 149 | 458.0 | 764.0 | |||||||
| Heating power input | kW | 1.7 | 5.3 | 9.0 | |||||||
| COP | W/W | 4.6 | 4.5 | 4.4 | |||||||
| Low temperature condition | Heating Capacity | kW | 7.0 | 20.0 | 35.0 | ||||||
| Hot water capacity | L/H | 118 | 337.0 | 590.0 | |||||||
| Heating power input | L/H | 1.7 | 5.0 | 9.4 | |||||||
| COP | L/H | 4.1 | 4.0 | 3.7 | |||||||
| Ultra-Low temperature condition | Heating Capacity | kW | 6.5 | 14.0 | 28.0 | ||||||
| Hot water capacity | L/H | 109 | 236.0 | 472.0 | |||||||
| Heating power input | L/H | 1.7 | 4.8 | 10.1 | |||||||
| COP | L/H | 3.8 | 2.9 | 2.8 | |||||||
| Ultra-Low temperature condition | V/Ph/Hz | 220/1/50 | 380/3/50 | ||||||||
| Heating type | Direct | ||||||||||
| Rated output water temperature | °C | 45 | |||||||||
| Maximum output water temperature | °C | 90 | |||||||||
| Work ambient temperature | °C | (-)25~43 | |||||||||
| Compressor | Type | Panasonic | Torin(Italy) | ||||||||
| Circulation water pump | Brand | Wilo(Inverter) | |||||||||
| Defrosting type | Bypass | ||||||||||
| Water side heat exchanger | Type | Tube-Tube type | |||||||||
| Air side heat exchanger | Type | Internally grooved copper pipe in aluminium fin | |||||||||
| Refrigerant | Type | R744 | |||||||||
| Controller | Brand | CAREL(Italy) | |||||||||
| Dimensions | Length | mm | 910 | 1280 | 1537 | ||||||
| Width | mm | 430 | 800 | 1000 | |||||||
| Height | mm | 920 | 1500 | 1884 | |||||||
| Unit noise level | dB(A) | 38 | 42 | 49 | |||||||
| Net weight | kg | 130 | 380 | 525 | |||||||
| Notes : Technical information may change without any prior information. | |||||||||||
